Hybrid Timber Frame > Package B >

Package B

1. Main Floor System

  • Adjustable steel tele-posts
  • Built up wood support beam
  • 5-½” sill sealer gasket
  • 2x6 pressure treated sill plate
  • Wood I pre-engineered floor joist system
  • 5/8" t&g OSB sub-floor sheathing
  • Builders shims
  • 1x8 t&g, v-joint pine skirting

2. Perimeter Wall System

  • Prefabricated wall panels (8’ high) constructed of 2x6 framing @16” o.c., R-4 Insulated sheathing, air barrier, & 1x3 strapping. Openings prepared with appropriate lintels
  • 1x8 t&g, v-joint pine siding
  • R-20 fiberglass insulation

3. Windows and Doors – Energy Star Rated

  • White P.V.C., 4-1/2” flush frame, Low-E argon thermal glass, insect screens.
  • Steel insulated entrance systems
  • 7-1/4" flush pine frame- white vinyl clad, Low-E argon thermal glass

4. Interior Partition Framing

  • 2x4 (or 2x6 as required) spruce, plates & studs @ 16” o.c.

5. Second Floor System (when applicable)

  • Pine timber support posts
  • 6x12 pine supprt beams
  • 6x8 pine timber floor joists 32” o.c.
  • 5/8" t&g OSBsub-floor sheathing

6. Gable Ends

  • 2x6 spruce framing – plates and studs
  • Lintel material – as required
  • Insulated wall sheathing – R4
  • House wrap – air barrier
  • 1x3 strapping
  • 1x8 t&g, v-joint pine siding
  • *and second floor walls when applicable

7. Roof System

  • Pre-engineered roof system
  • Structural beams and support posts as required
  • Truss bracing material – as required
  • ½” OSB sheathing
  • 15 lb building paper for eaves and rakes
  • Roof shingles
  • Pre-finished steel flashings
  • Roof vents
  • Sub-fascia – 2x4 spruce

8. Soffit

  • Pre-finished vented aluminum soffit
  • J-trim
  • Fasteners

9. Exterior Trim

  • 1x4 pine window and door trim
  • 1x6 pine fascia board

10. Porch Roof System

  • Support posts & beam
  • Dimensional spruce rafters
  • Matching finish to main roof
  • Pre-finished vented aluminum soffit (eaves and ceiling)
  • *when applicable to design

11. Interior Wall & Ceiling Covering

  • ½” Drywall to cover interior side of exterior walls, partition walls and ceiling surfaces of main floor.
  • Strapping as required
  • *and second floor when applicable

12. Interior Trim

  • 1x6 pine baseboard
  • 1x4 pine interior door casing, corner & ceiling trim
  • 1x6 pine window jamb extensions
  • 1x4 window and door casing

13. Interior Doors

  • Pre-hung hollow core embossed colonial doors

14. Fibreblass Insulation

  • R-20 for gable ends, second floor exterior walls (when applicable) and sub-floor perimeter
  • R-31 for ceilings
  • Approved vapor barrier for all insulated surfaces

15. Main Floor Covering

  • 1x6 t&g pine flooring

16. Second Floor Covering

  • 1x6 t&g pine flooring

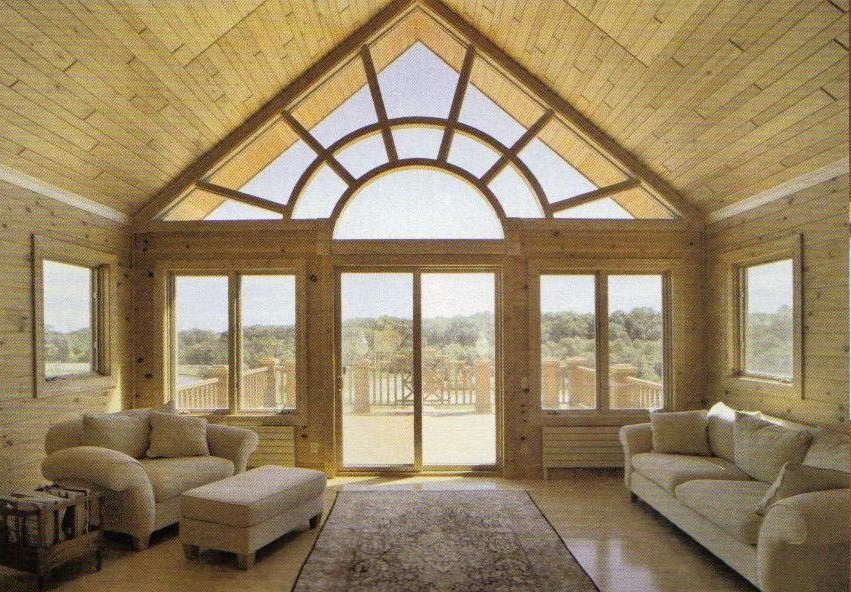

example of cottage, cabin, wooden house
